Setup
Fragment files
a5_frags <- "/data1/shahs3/isabl_data_lake/analyses/86/75/28675/TCGA-06-A5U0-01A-31-A615-42-X011-S07_aliquot/outs/fragments.tsv.gz"
aa_frags <- "/data1/shahs3/isabl_data_lake/analyses/86/67/28667/TCGA-4W-AA9S-01A-22-A617-42-X015-S12_aliquot/outs/fragments.tsv.gz"
cbs1 <- read.csv("/data1/shahs3/isabl_data_lake/analyses/86/75/28675/TCGA-06-A5U0-01A-31-A615-42-X011-S07_aliquot/outs/singlecell.csv")
cbs2 <- read.csv("/data1/shahs3/isabl_data_lake/analyses/86/67/28667/TCGA-4W-AA9S-01A-22-A617-42-X015-S12_aliquot/outs/singlecell.csv")
sample_list <- list(
"A5U0" = list(
"fragments_file" = a5_frags,
"cells" = cbs1$barcode[cbs1$is__cell_barcode == 1]
),
"AA9S" = list(
"fragments_file" = aa_frags,
"cells" = cbs2$barcode[cbs2$is__cell_barcode == 1]
)
)Generate bins object
bins <- get_tiled_bins(bs_genome = BSgenome.Hsapiens.UCSC.hg38, tilewidth = 1e7)Get blacklist
blacklist <- get_blacklist(genome = "hg38")Load WGS derived CNV calls
a5u0_wgs <- read.table(file = "/data1/shahs3/junobackup/users/mcphera1/projects/gdan_atac/from_shahab/TCGA-06-A5U0-allelic-CN.tsv", header = T, sep = "\t")
aa9s_wgs <- read.table(file = "/data1/shahs3/junobackup/users/zatzmanm/repos/scatac_awg/R/eventual_bookdown/pt_vignettes/TCGA-4W-AA9S-allelic-CN.tsv", header = T, sep = "\t")
wgs_ascn <- list(A5U0 = a5u0_wgs, AA9S = aa9s_wgs)Process with SCATools
sce_list <- lapply(names(sample_list), FUN = function(sample_id) {
cli::cli_alert_info("Running {sample_id}")
sce <- run_scatools(
sample_id = sample_id,
fragment_file = sample_list[[sample_id]]$fragments_file,
cells = sample_list[[sample_id]]$cells,
bins = bins,
blacklist = blacklist,
outdir = file.path("results", sample_id),
verbose = TRUE,
overwrite = FALSE,
segment = FALSE,
ncores = 16,
save_h5ad = FALSE
)
# Depth based clustering
sce <- cluster_seurat(sce, assay_name = "counts_gc_modal_smoothed_ratios", suffix = "_depth", resolution = 0.4, verbose = FALSE)
# Relevel clones
if (sample_id == "A5U0") {
sce$clusters_depth <- factor(sce$clusters_depth, levels = c(0, 1, 3, 2), labels = c("A", "B", "C", "N"))
}
})Integrate WGS derived CNV data
sce_list <- lapply(names(sce_list), FUN = function(sample_id) {
sce <- sce_list[[sample_id]]
# Integrate WGS derived CNV data
df_wgs <- wgs_ascn[[sample_id]] %>%
mutate(
total = 2 * (CN_MAJOR + CN_MINOR),
major = 2 * CN_MAJOR,
minor = 2 * CN_MINOR,
chr = factor(CONTIG, levels = gtools::mixedsort(unique(CONTIG)))
) %>%
dplyr::rename("af" = "ALLELIC_FRACTION") %>%
mutate(
ai = abs(af - 0.5) / 0.5,
ai2 = 0.5 - abs(af - 0.5)
)
df_grange <- df_wgs %>%
makeGRangesFromDataFrame(seqnames.field = "chr", keep.extra.columns = T)
# Integrate with our scATAC data
int_granges <- integrate_segments(x = rowRanges(sce), y = df_grange, granges_signal_colname = c("total", "major", "minor", "af", "ai", "ai2"))
rowRanges(sce) <- int_granges
rownames(sce) <- rowData(sce)$ID
return(sce)
})

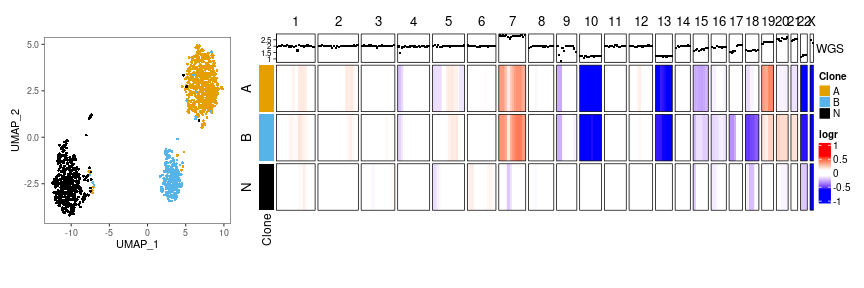

names(sce_list) <- names(sample_list)Plotting
col_clones <- function(clones) {
c(dittoColors()[1:length(unique(clones[clones != "N"]))], "black")
}
pls <- imap(sce_list, .f = function(sce, sample_id) {
pl_cols <- col_clones(sce$clusters)
names(pl_cols) <- levels(sce$clusters)
p1 <- dittoDimPlot(sce, var = "clusters", reduction.use = "UMAP") + scale_color_manual(values = pl_cols) +
theme(aspect.ratio = 1) +
labs(color = "Copy Number Cluster", title = NULL) +
theme(legend.position = "none")
rowRanges(sce)$WGS <- rowRanges(sce)$total
ht1 <- cloneCnaHeatmap(sce, assay_name = "segment_merged_logratios", clone_name = "clusters", bulk_cn_col = "WGS", col_clones = col_clones(sce$clusters), legend_name = "logr", col_fun = logr_col_fun(breaks = c(-0.6, -0.1, 0.1, 0.6), colors = c("blue", "white", "white", "red"))) %>%
as.ggplot()
pcomb <- p1 + ht1 + plot_layout(widths = c(3, 10))
return(pcomb)
})
names(pls) <- names(sample_list)
